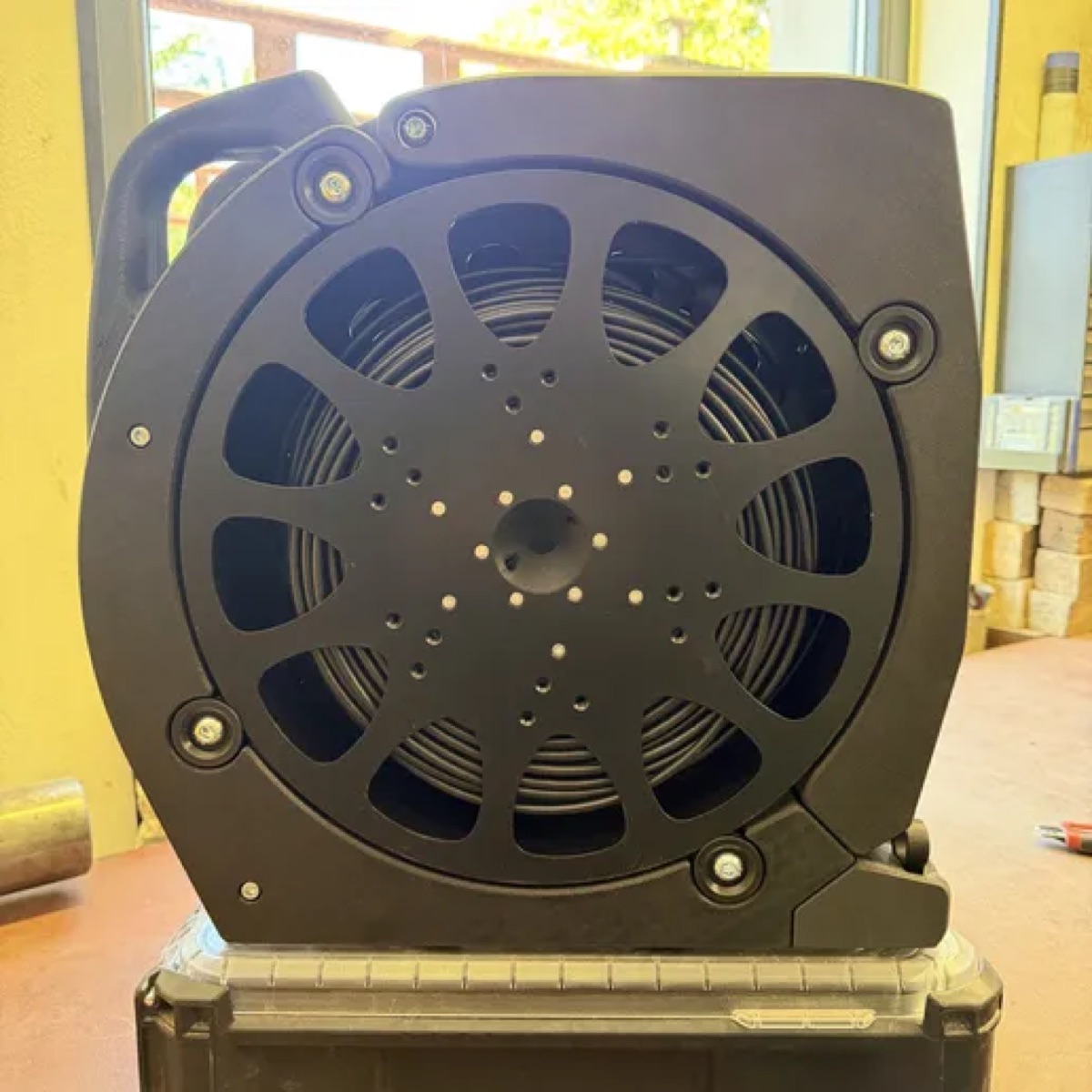

Spooler Lite
A mechanical unwinder without display and electronics: body, rollers and a pass-through head.
Show the previewBuild your own Spooler

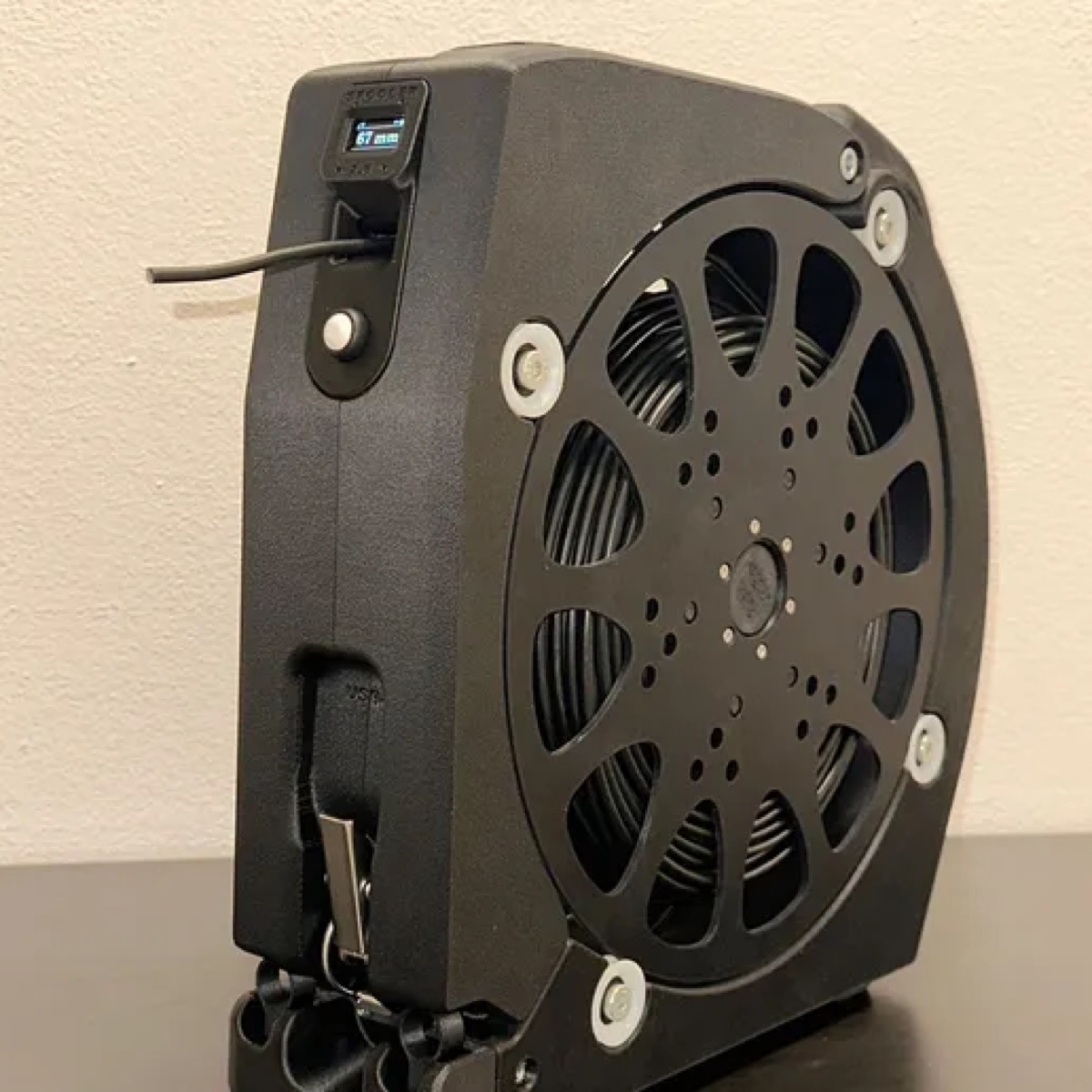

A cable-spool measuring unit with an AS5600 encoder and an ESP32-C3. Complete files: 3D models, drawings, assembly guide and bill of materials.
Get access- Ø300 mm
- spool with measuring head
- 28 parts
- STL for 3D printing and turning
- PDF + ZIP
- the guide and all files to download
- ASA-CF
- or Spectrum, the recommended material
Guides
Have a look at a preview of every guide. The full guide is for those who own it.

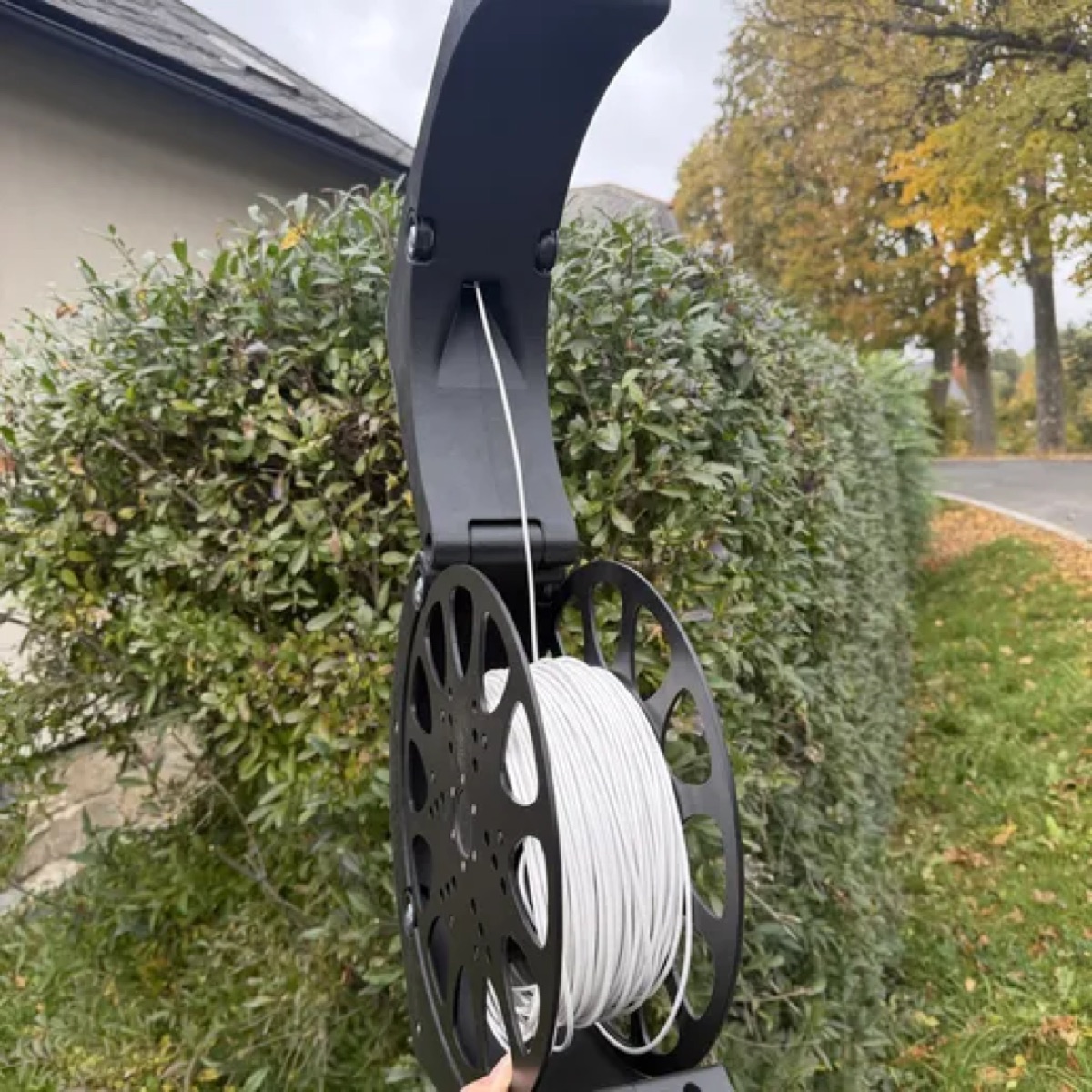

Spool
The spool on its own: fixed and removable side, step by step, with the parts and the videos.
Show the previewChoose your access
One-time payment, access does not expire.
Basic
The Spooler Lite guide and the spool.
- Guide and files for Spooler Lite
- Spool, body and pass-through head
- STL models, spool sides (DXF, STEP), assembly videos
Includes: Spooler Lite
Complete
Both guides: Spooler Lite and Spooler Smart, and the spool.
- Everything in Basic
- Guide and files for Spooler Smart
- Complete bill of materials and wiring of the electronics
Includes: Spooler Lite + Spooler Smart
Final price, the seller is not a VAT payer. Paid by card through Stripe.
