Spooler Smart
A measuring unwinder with display, AS5600 sensor and control board.
- Head with display and AS5600 sensor, full guide and bill of materials
- Wiring of the electronics (buy the electronics ready-made in the e-shop)
20 parts with a 3D model27 items in the bill of materials6 chapters5 videos

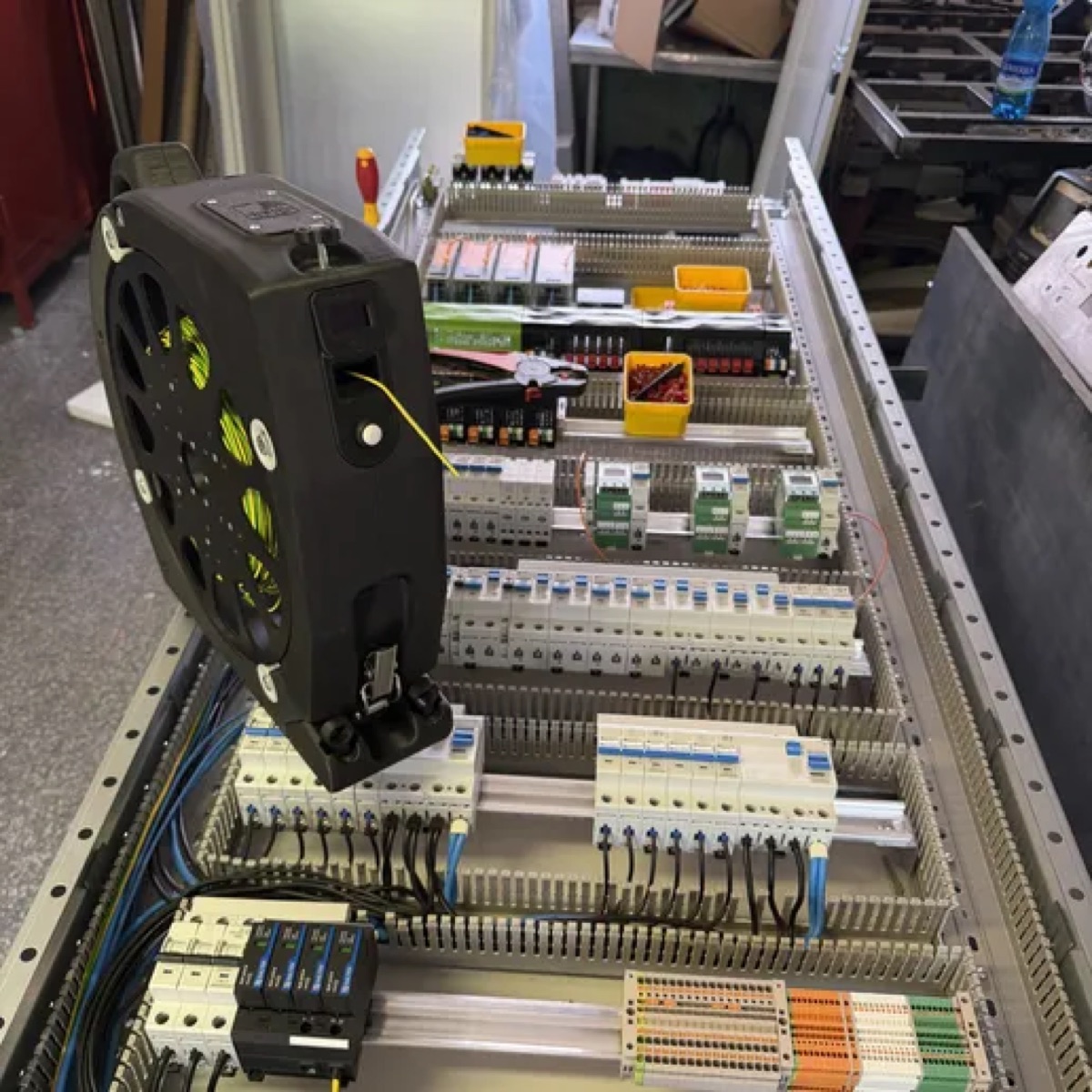

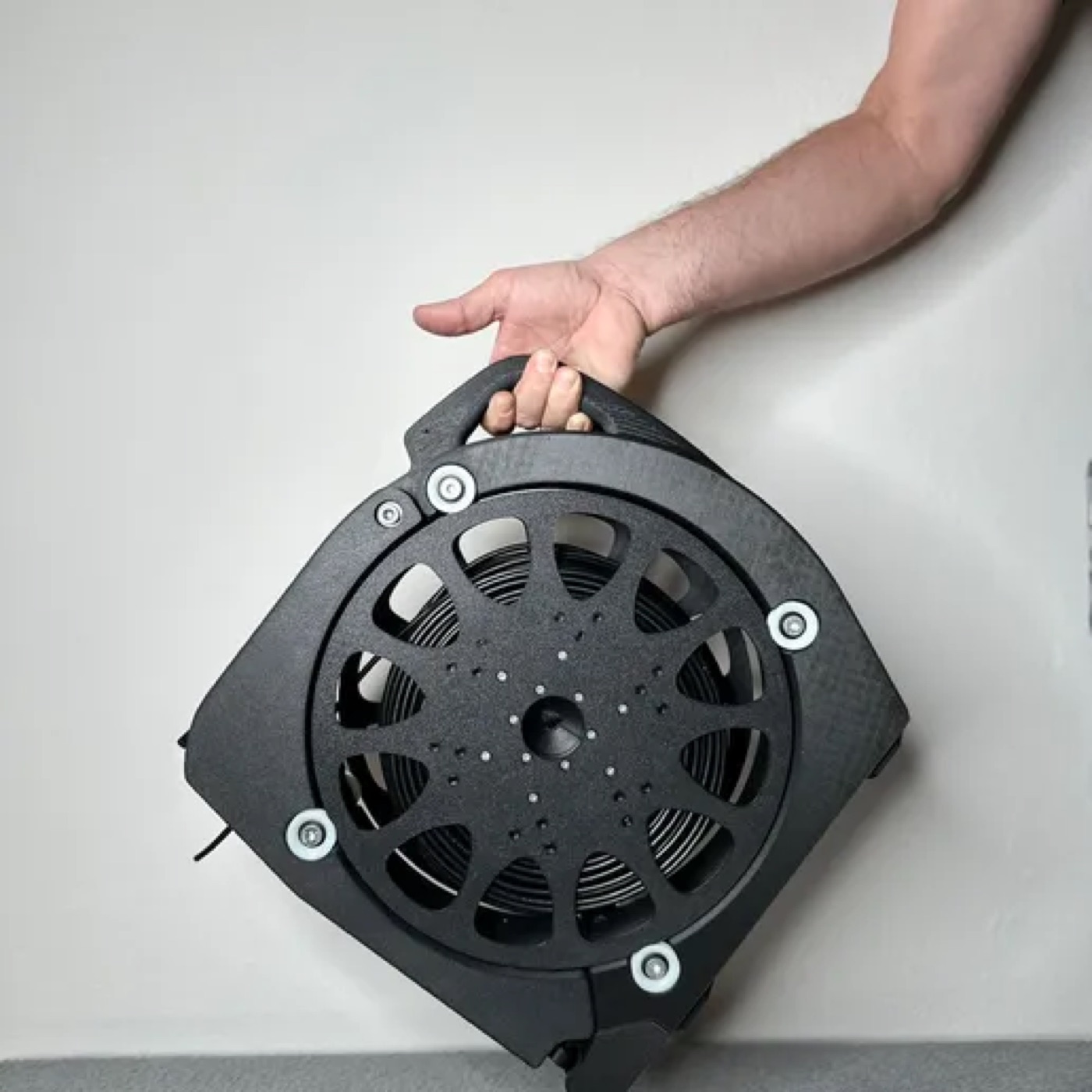

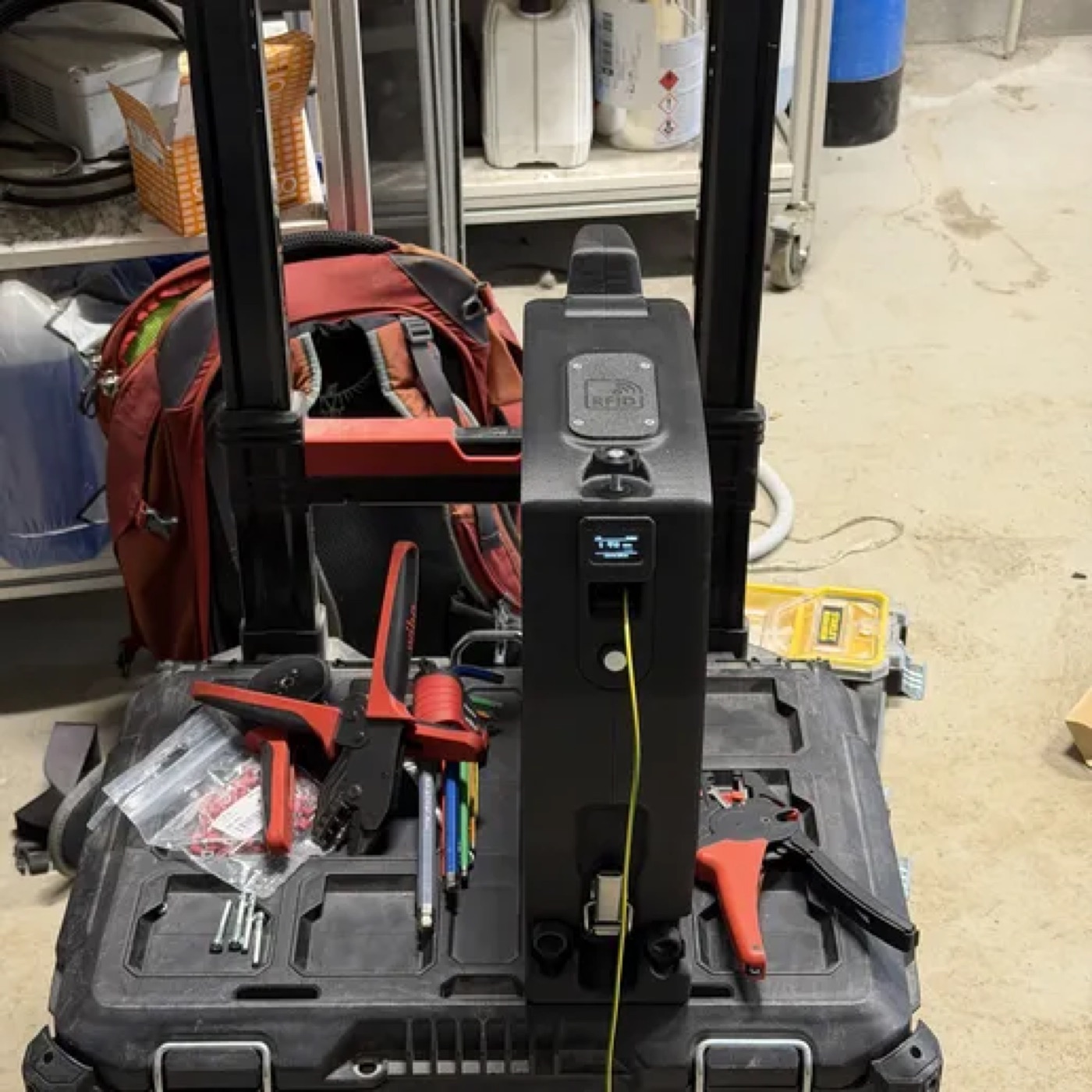

What it looks like
What is in the guide
Guide
Step 1
Encoder head

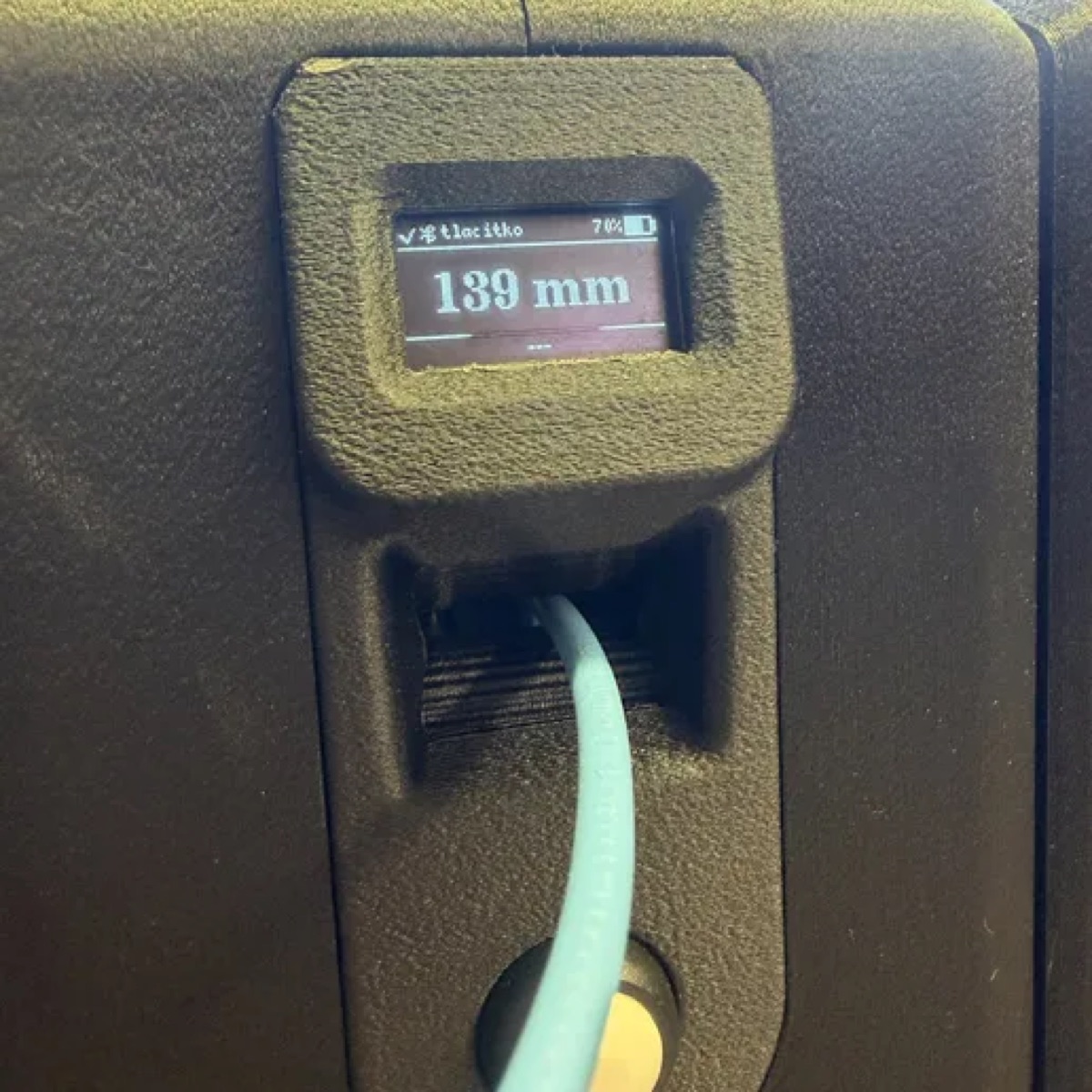

- Base 011d with the 0.96" display, the AS5600 board and the button.
- Spring pusher with a roller on two 624 bearings.
- The wheel with the magnet turns on an M4x40 between two bearings.
Step 2
Rollers
- Aluminium M8 axis, 71 mm long, 15 mm of thread at both ends.
- Two 608-2RS bearings, 8x12 and 8x16 washers, a nylon or printed roller.
Step 3
Body
- Battery holder and lid, K2469 latch, arms joined with three M5x50.

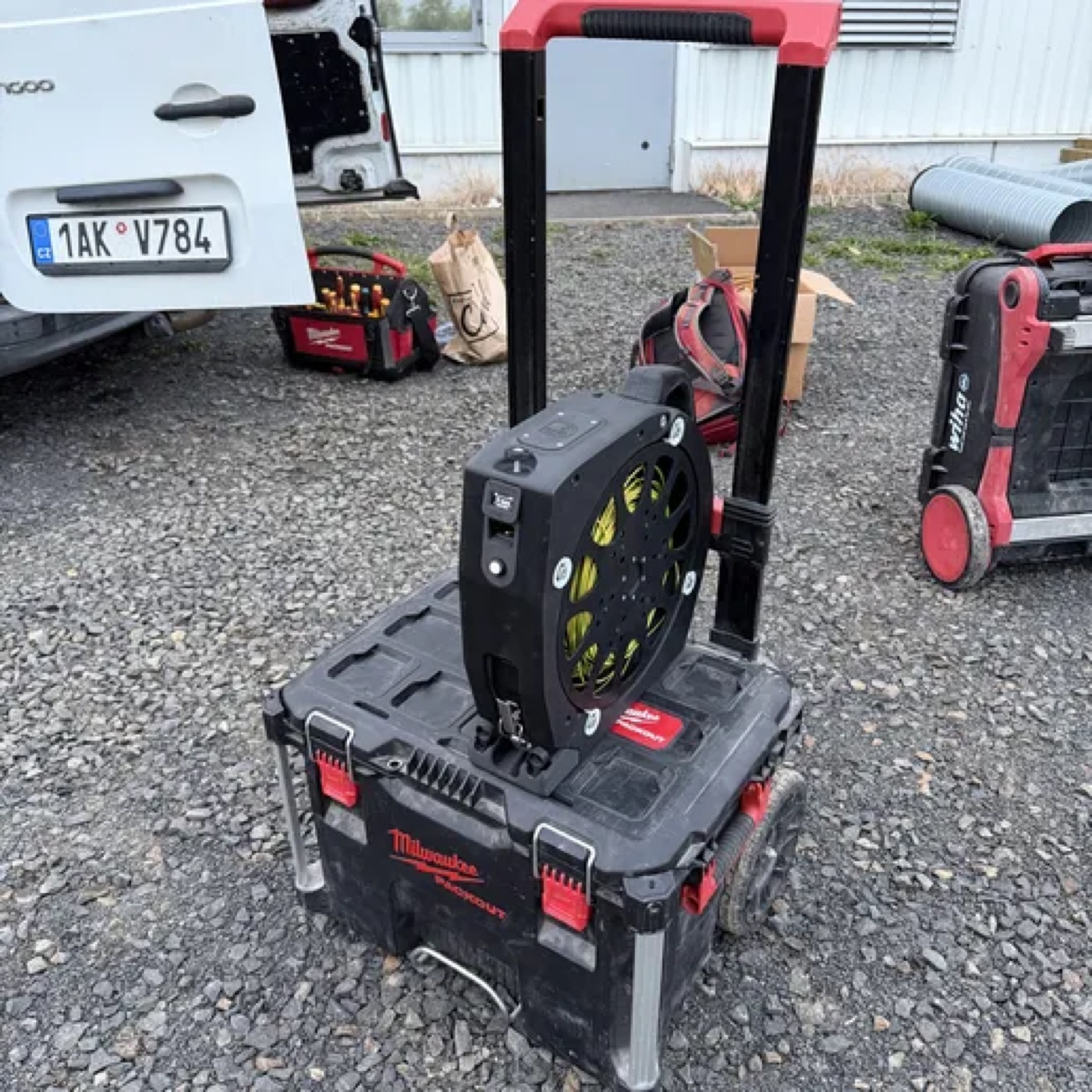

- Front part with the K2468 catch and two bases with Packout holders.
Step 4
Electronics
- Board in the BOARD_HOLDER, four JST connectors.
- Lay the cables in the channels and fix them, do not pinch them when closing the arms.
Buying
What to buy and where
What you will need
| 4 | Screw M4x10 |
| 8 | Screw M5x16, countersunk head |
| 2 | Screw M5x20 |
| 3 | Screw M5x50 |
Downloads
Assembly guide (PDF)
printable guide, all chapters
All files (ZIP)
guide, 3D models, files and videos
3D models Spooler Smart (STL)
20 parts: body, head with electronics, rollers (the spool parts are in the spool guide)
The full guide is for members
The step-by-step instructions, pictures, videos, downloads and the 3D viewer of the parts unlock after you buy.
