Spooler Lite
A mechanical unwinder without display and electronics: body, rollers and a pass-through head.
- Body, rollers and a pass-through head
- STL models and the files of the guide
- Step-by-step guide, bill of materials and videos
12 parts with a 3D model11 items in the bill of materials5 chapters1 videos

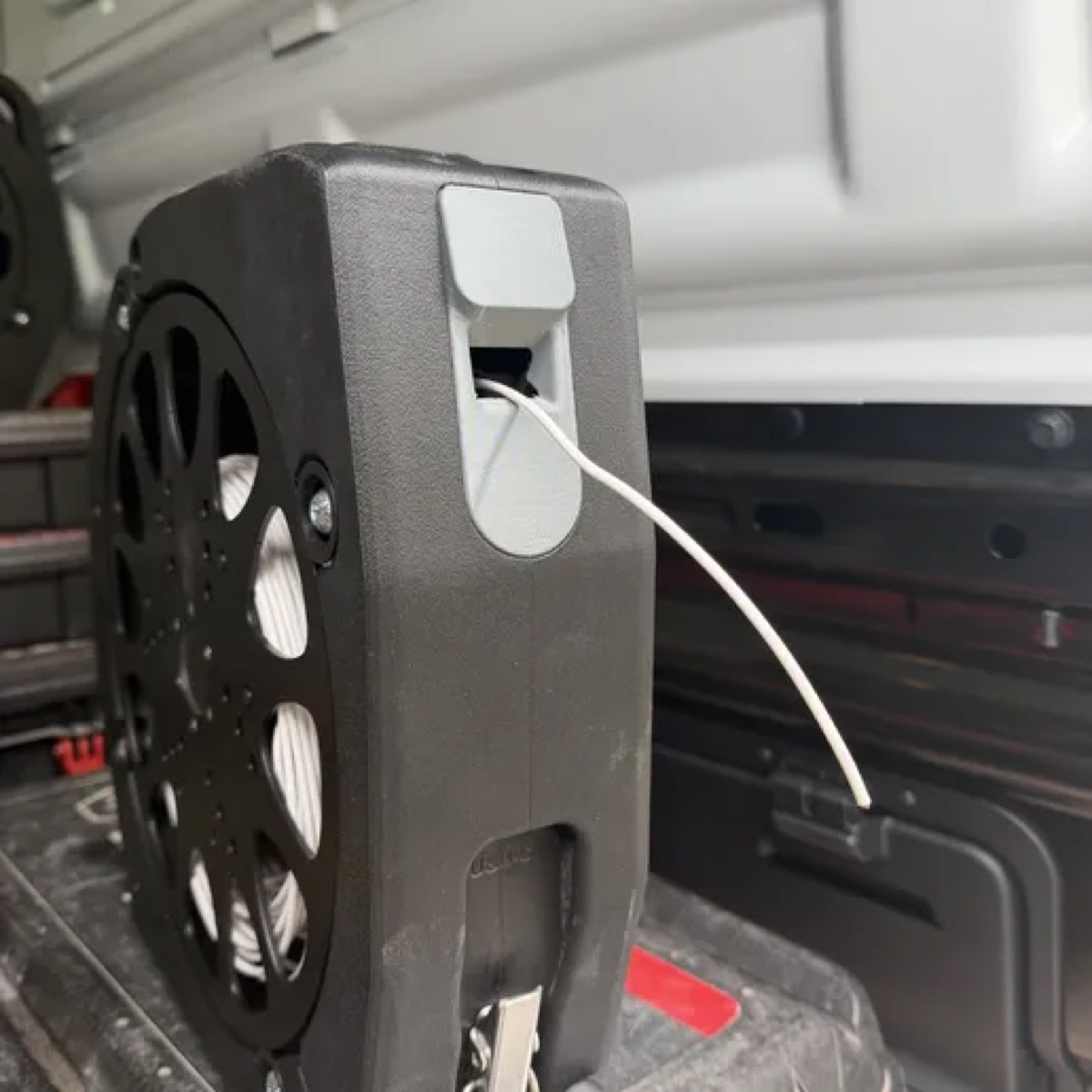

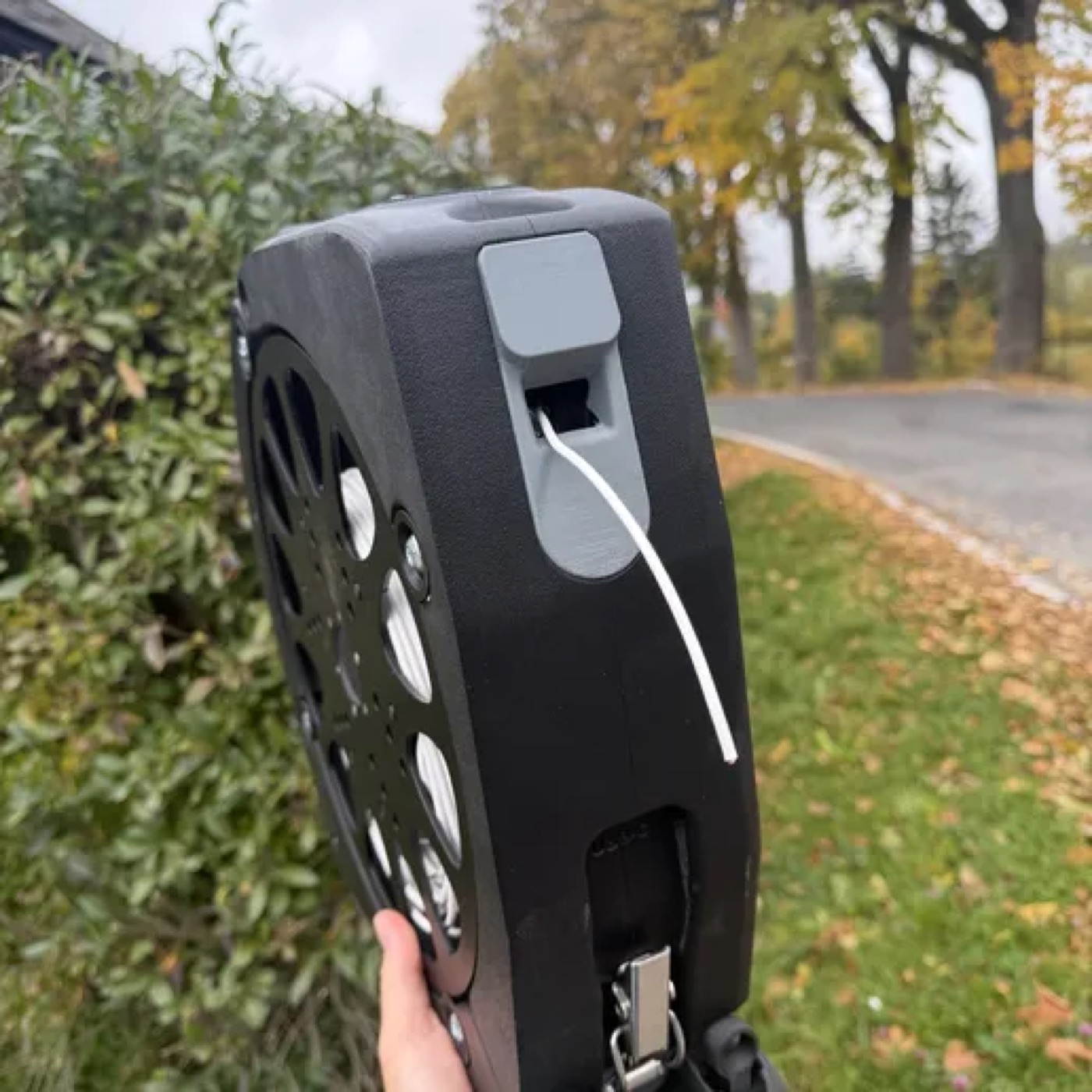

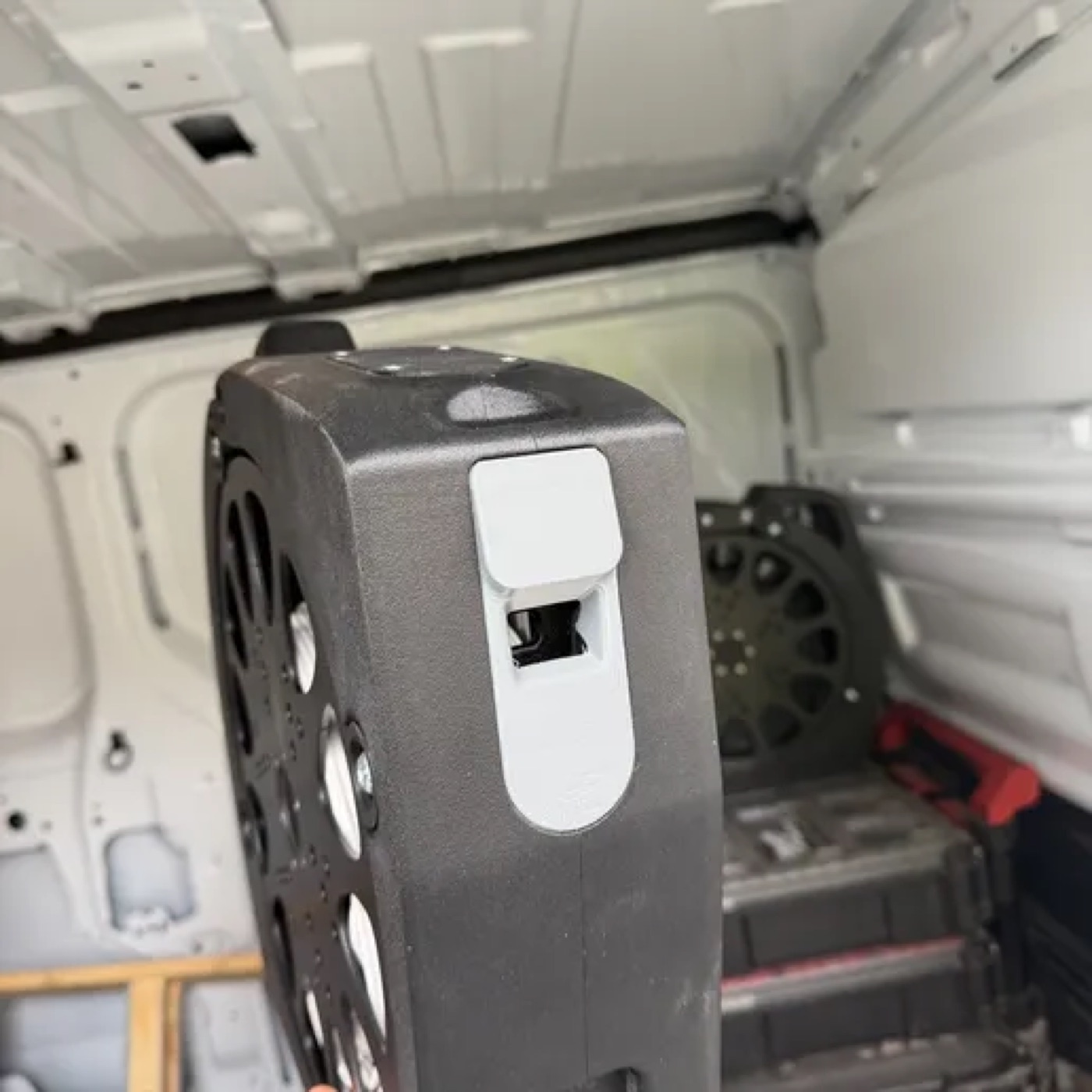

What it looks like
What is in the guide
Guide
Step 1
Spooler Lite head
- A simple pass-through head: a base and a cap, the cable is just pulled out.
- No display, sensor or pusher.
Step 2
Rollers
- Aluminium M8 axis, 71 mm long, 15 mm of thread at both ends.
- Two 608-2RS bearings, 8x12 and 8x16 washers, a nylon or printed roller.
Step 3
Body
- K2469 latch, arms joined with M5x50 screws (no battery or board).
- Front part with the K2468 catch and two bases with Packout holders.
Buying
What to buy and where
What you will need
| 4 | Screw M4x10 |
| 8 | Screw M5x16, countersunk head |
| 2 | Screw M5x20 |
| 3 | Screw M5x50 |
Downloads
Assembly guide (PDF)
printable guide, all chapters
All files (ZIP)
guide, 3D models, files and videos
3D models Spooler Lite (STL)
12 parts: body, rollers, pass-through head (the spool parts are in the spool guide)
The full guide is for members
The step-by-step instructions, pictures, videos, downloads and the 3D viewer of the parts unlock after you buy.
